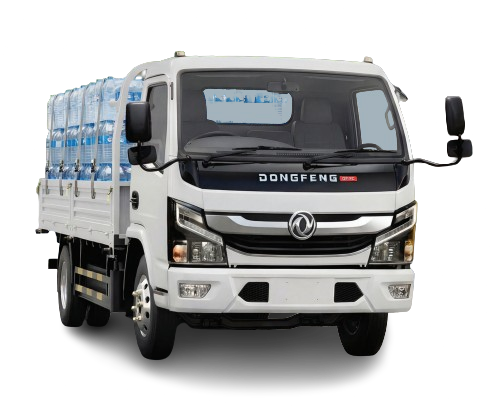

The DFAC 5-Ton Light-Duty EV (Model: EV45) is an all-electric commercial workhorse marketed in Nepal by Triveni Motocorp Pvt. Ltd.
Cabin Seat Capacity: It features an 1880 mm single-row cabin
Seats
2 to 3
Top Speed
90| Item | Specification |
|---|---|
| Model | EV45 |
| GVW | 5000 kg |
| Driver Cabin | 1880 / Single row |
| Curb Weight – Chassis | 2400 kg |
| General Dimensions (L × W × H) | 5995 × 2180 × 2250 mm |
| Flat Bed Cargo Dimensions (L × W × H) | 4200 × 2100 × 400 mm – option |
| Number of Axles | 2 |
| Wheelbase | 3308 mm |
| Max Gradeability | ≥25% |
| Minimum Ground Clearance | 200 mm |
| Max Speed | 90 km/h |
| NEDC Range | 350 km (40 km/h) |
| Auxiliary Battery Voltage / Capacity | 12 V / 100 Ah |
| Item | Specification |
|---|---|
| Type | PMSM |
| Technical Route | Motor + Reducer |
| Transmission Ratio | 3.148 |
| Rated / Peak Torque | 150 / 320 Nm |
| Rated / Peak Power | 60 / 120 kW |
| Rated / Max RPM | 3820 / 12000 |
| Item | Specification |
|---|---|
| Technical Route | 4 IN 1 MCU + DC + DCAC + PDC |
| Rated Operational Voltage | 540 V |
| DC/DC Rated Power | 1.5 kW |
| Item | Specification |
|---|---|
| Battery Make | CATL |
| Cell Manufacturer / Type | LFP |
| Layout Form | Two sides tiled |
| Energy Density | 147 Wh/kg |
| Battery Capacity | 81.14 kWh |
| Rated Voltage | 540.96 V |
| Item | Specification |
|---|---|
| Rear Axle Speed Ratio | 2600 |
| Brake Type / Size | Drum type 320 × 85 mm |
| Frame Width | 760 mm |
| Number of Leaf Springs (Front / Rear) | 2 / 2+1 |
| Longitudinal Beam Size | 190 × 55 × 5 mm |
| Item | Specification |
|---|---|
| Number | 6 |
| Item | Specification |
|---|---|
| Steering | RHD |
| Braking Mode | Hydraulic Brake |
| ABS / ESC | ABS (ESC optional) |
| Automatic Slack Adjuster | Yes |
| Item | Specification |
|---|---|
| Fast Charge | Euro standard CCS2 |
| Slow Charge Power | 6.6 kW |
| Position of Charge Port | Back side of left driver cabin |
| Item | Specification |
|---|---|
| Cold | Yes |
| Hot | Yes |
| Item | Specification |
|---|---|
| Name Plate Location | Chassis B pillar on right side of bridge |
| Reversing Camera | Mirror dash cam |
| Reversing Radar | Yes |
| Flat Box | Yes |
| Closed Cargo Box | Optional |
| Item | Specification |
|---|---|
| GVW | 5-Ton |
| Battery | CATL 81.14 kWh |
| NEDC Range | 350 km |
| Warranty | 5 Years or 200,000 km |
| Emissions | Zero Emissions |
