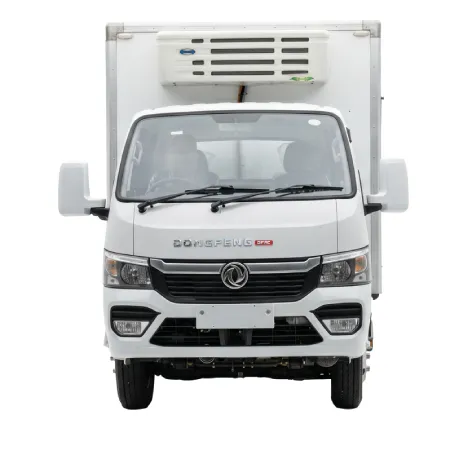

The DFAC E-Star T is an all electric light refrigeration truck distributed in Nepal by Triveni Motocorp Pvt. Ltd. It is engineered to deliver high profit margins for cold-chain logistics while maintaining exceptionally low operating costs.

Key operational highlights include:

  • Powertrain & Performance: Driven by a Permanent Magnet Synchronous Motor (PMSM) that delivers a peak power of 105 kW and a peak torque of 300 Nm. The truck features a direct-drive technical route and a ≥ 25% gradeability rating to handle challenging terrain.

  • Battery & Range: Equipped with a high capacity CATL Lithium Iron Phosphate (LFP) battery pack (83.75 kWh) that provides a driving range of up to 280 km per charge under ideal conditions (at 40 km/h). It supports efficient charging, including a CCS2 fast-charging setup.

  • Capacity & Utility: Built on a robust chassis with a Gross Vehicle Weight (GVW) of 4.5 tonnes, a 3000 mm wheelbase, and a dual-axle configuration rated for 1500 kg at the front and 3000 kg at the rear. It provides a practical 216 mm ground clearance for varying road quality.

  • Safety & Comfort: Features a single-row cabin complete with both hot and cold air conditioning, a liquid braking system integrated with ABS/ESC, and modern driving aids like reversing radar and a reverse image camera system.

The vehicle comes backed by a 5 year or 300,000 km warranty, highlighting its reliability for commercial transport businesses.

DFAC E-Star T seat

Seats

2 to 3
DFAC E-Star T speed

Top Speed

280KM
Book a Test Drive Get a Brochure Get a Quote Contact Us

Color AVAILABLE

DFAC E-Star T
DFAC E-Star T

DFAC E-Star T Specification

Item Specification
Model E-Star T
Type High Profit Refrigeration Truck / Electric Light-Duty Truck
GVW 4.5 T (4500 kg)
Cabin Model 1650 / Single Row
Chassis Curb Weight 1800 kg
Chassis Dimensions (L×W×H) 5650 × 1970 × 1950 mm
Flat Bed Cargo Dimensions (L×W×H) 3600 × 1700 × 355 mm
Number of Axles 2
Wheelbase 3000 mm
Wheel Base Front / Rear 1387 / 1242 mm
Chassis Front Overhang / Rear Overhang 1180 / 1320 mm
Gradeability ≥ 25%
Maximum Speed ≤ 100 km/h
Minimum Ground Clearance 216 mm
Mileage 280 km @ 40 km/h
Battery Voltage 12 V
Item Specification
Type PMSM
Technical Route Motor Direct-Drive
Rated / Peak Torque 140 / 300 Nm
Rated / Peak Power 50 / 105 kW
Item Specification
Technical Route All in 1
Rated Working Voltage 375 V
Rated / Maximum Capacity 140 / 280 kVA
Item Specification
Assembly Supplier CATL
Cell Manufacturer / Type LFP
Battery Capacity 63.75 kWh
Rated Voltage 318.78 V
Item Specification
Rated Load 1500 kg
Brake Form / Dimension Disc
Item Specification
Rated Load 3000 kg
Brake Form / Dimension Drum
Item Specification
Frame Dimension 140 × 50 × 4 mm
Number of Leaf Springs (Front / Rear) 3 / 5
Item Specification
Model 195/75R16B LT 12PR
Quantity 4 + 1 (Spare Tire)
Item Specification
Cold Air Yes
Warm Air Yes
Item Specification
Brake Form Liquid Brake
ABS / ESC ABS / ESC
Brake Self-Adjusting Arm With
Item Specification
Power Outlet Yes
Item Specification
Fast Charge Yes – CCS2
Slow Charge Yes
Slow Charge Power 6.6 kW
Item Specification
Chassis Nameplate Location B-Pillar on Right Side of Cab
Reverse Image Yes
Reversing Radar Yes
Fairing Yes
Stabilizer Bar Yes
Spare Tire Yes
Item Specification
Ground Clearance 216 mm
Battery CATL 63.75 kWh
Range 280 km
Warranty 5 Years or 300,000 km
Gradeability ≥ 25%
Rated Power 50 / 105 kW
